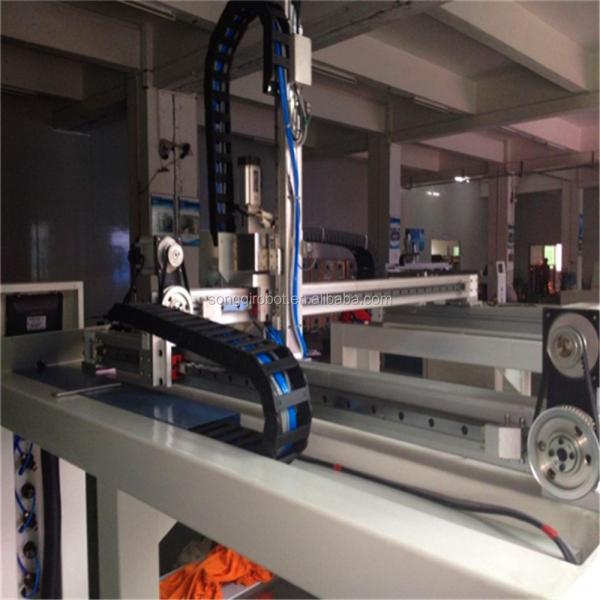

PLC Control 5 Axis Spray Painting Equipment 4kw Stainless Steel Booth

Name: PLC Control 5 Axis Spray Painting Equipment 4kw Stainless Steel Booth
Brand: Songqi
Price: 1 USD

China PLC Control 5 Axis Spray Painting Equipment 4kw Stainless Steel Booth wholesale

Place of Origin : Guangdong, China

Brand Name : Songqi

Certification : ISO9001

Packaging Details : Packaging film package and wooden binding

Supply Ability : 200 Set/Sets per Year

Price : Negotiable

Model Number : SQ100

MOQ : Negotiable

Payment Terms : D/P, D/A, L/C, T/T

Delivery Time : 15-20

Substrate : Steel

Core Components : PLC, Motor, Gear

Voltage : 110V/120V/127V/208V/220V /240V/380V/415V/460V

Power : 4kw

Dimension(L*W*H) : L2200*W2100*H1950mm

Weight : 900kg

Usage : Operation by touch screen

Installation location : spray booth

spray booth : stainless steel spray curtain cabinet

degree of freedom : 5 axis

pump : American GRACO 308 diaphragm pump

servo system : Japanese Panasonic servo sysetem

Contact Now

PLC Control 5 Axis Spray Painting Equipment 4kw Stainless Steel Booth

High quality factory price 5 Axis Spray Painting Machine

Product Application

This spraying mchine is professional design for glass . Its design depend on the shape and size , coating process of mouse , we support Amercian GRACO 308 diaphram pump and Japanese ANEST IWATA air spray gun. When galss placed in order on the net plate, this machine can spray from left to right, from front to back .

SPECIFICATIONS FOR RECIPROCATING SPRAYING MACHINE
Control system	1. Japanese OMRON PLC 2. Taiwan WEINTEK Color industrial touch screen 3. Schneider Electric switch and Power Supply 4. Japanese OMRON relay


Drive system	Japanese Panasonnic servo drive system


Transmission system	1. Aluminium profile module 2. Taiwan HIWIN Linear guide rail 3. Taiwan HIWIN Silent slide 4. Precision synchronous wheel 5. Italy Megadyne Synchronous belt with steel wire 6. positioning accuracy difference ±1mm


Product exchang platform	1. Precision divider 2. Taiwan CPG Gear motor 3. Japanese Mitsubishi frequency converter
Product rotation platform	1. Precision divider 2. Can be 90 degrees, 180 degrees rotation, continuous rotation
Spray gun	Japanese IWATA
Paint supply system	1. Amercian GRACO 308 diaphragm pump 2. Pneumatic agitator produce from Taiwan,China 3. Taiwan AIRTAC Solenoid valve, Pressure regulating valve, Pressure gauge
Power supply	AC220V50HZ, Single phase three wire

PLC Control 5 Axis Spray Painting Equipment 4kw Stainless Steel Booth

Detailed Images

Machine Parts

Name: servo motor

Brand: Panasonnic

Original: Japanese

positioning accuracy ± 0.5mm

Main Features

Name: Linear guide rail and Silent slide
Brand: HIWIN
Original: Taiwan China
positioning accuracy ± 0.5mm

no noise

Machine Parts

Name: spray gun
Brand: DEVILSS
Original: Japanese
T-APGV spray gun

HVLP

Main Features

Name: touch screen
Brand: WEINTEK
Original: Taiwan China
10 inch

Color industrial touch screen

Exhibition

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
